ALSPEC’S High Performance Sliding Door

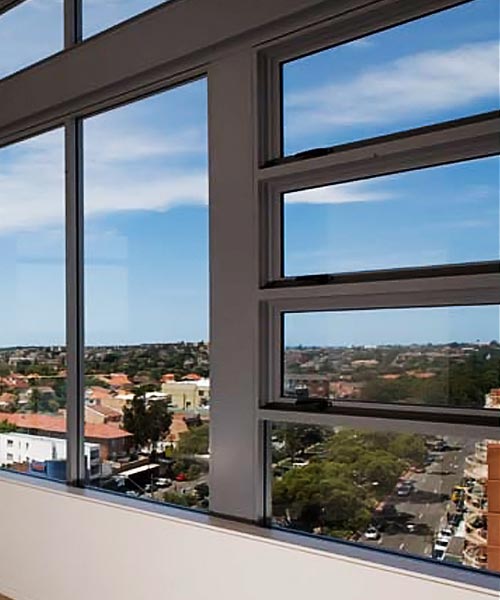

The most robust of all the awning windows, the Murray 50mm awning window has a casement option and is ideal for all commercial applications. The awning window configuration is recommended as the best performing option in exposed areas.

Both the Murray Awning and Casement windows accept glass thickness from 5mm to 25mm double glazed units, meaning that the system can be configured for excellent thermal and acoustic performance, thus enhancing the overall insulation characteristics of the building.

Suitable for single or double glazing the Murray 50mm awning window not only has it’s own 50mm commercial framing system but seamlessly interfaces with ALSPEC’s McArthur and Hunter commercial systems.

Specifications:

• Maximum sash size 1600mm high x 1100mm wide
• Maximum sash weight 45kg
• Up to 1000Pa serviceability loading
• Up to 1800Pa ultimate loading
• Up to 600Pa water rating
• Meets AS2047
